What modchip is this?

nidge · Post by **nidge** » Sun Oct 14, 2012 3:13 pm

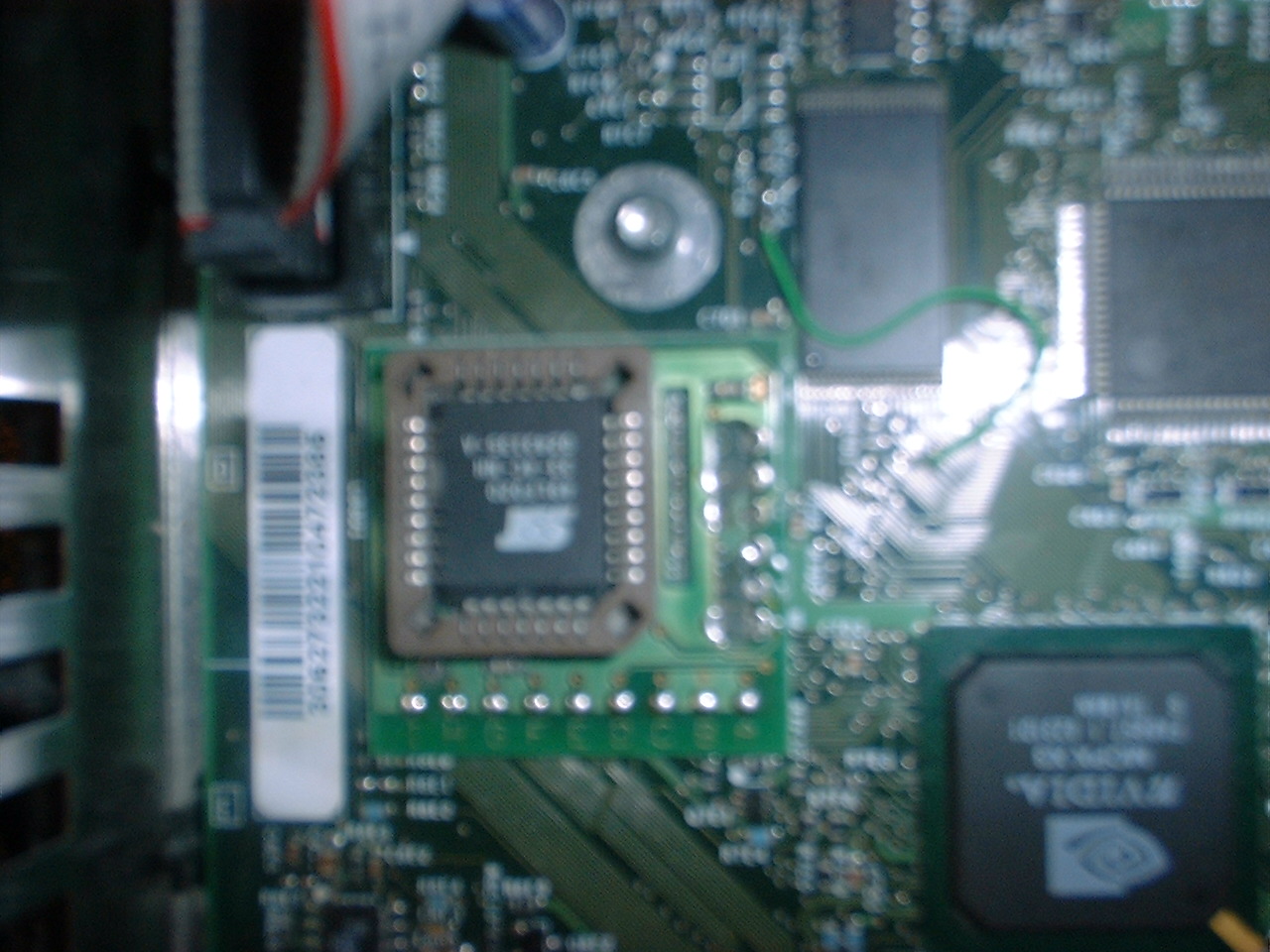

Hi, can anyone tell me what modchip this is? It`s flashable, only tried a 256 BIOSes atm. X2, IND and Evox all seem to work.
It`s not on a pinheader it is soldered directly to the mobo (v1.1), and has a single green wire link.

Sorry that the photo is a bit out of focus

Nextelhalo · Post by **Nextelhalo** » Sun Oct 14, 2012 3:54 pm

Kinda looks (and sounds) like an old Aladin chip but i couldnt find it on the list at X-scene. Hope someone can answer this, i'm interested to know.

MrMajst3r · Post by **MrMajst3r** » Sun Oct 14, 2012 3:56 pm

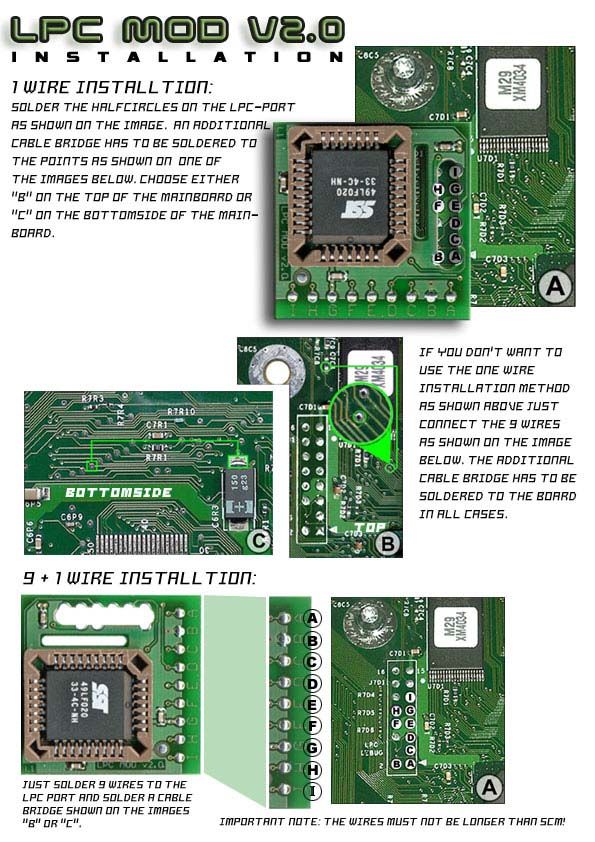

Nope. It's an old cheapmod

http://www.llamma.com/xbox/Mods/cheapmod_assembly.htm

It works only on 1.0-1.2 consoles I think.

I have similar one in my collection

Post by **Xphazer** » Sun Oct 14, 2012 10:18 pm

nidge · Post by **nidge** » Mon Oct 15, 2012 9:30 am

Thanks Xphazer

Just need to find out if its a 256k or higher now?

Done a bit of Googling, looks like it's 256k?

Post by **xman** » Mon Oct 15, 2012 10:17 am

AZImmortal · Post by **AZImmortal** » Mon Oct 15, 2012 11:06 pm

Since it's just a 256kb chip, you might want to consider flashing the TSOP since your console has a 1mb TSOP.

Nextelhalo · Post by **Nextelhalo** » Tue Oct 16, 2012 3:23 pm

AZImmortal wrote:Since it's just a 256kb chip, you might want to consider flashing the TSOP since your console has a 1mb TSOP.

Always a good idea if you want to save the chip for another xbox. Might be alittle tougher to take it off the xbox since it was not a pinheader install but atleast you'd have a spare chip that is pre-flashed, you could save some xbox's with that bad boy.

professor_jonny · Post by **professor_jonny** » Wed Oct 17, 2012 12:18 am

problem is that chip will only work on a 1.2 to 1.0 cheap mods were patched out with the advent of the 1.3 motherboards because of an adressing issue implemented to bar them.

it has limited use.

nidge · Post by **nidge** » Wed Oct 17, 2012 9:49 am

I think I`ll leave it on the board it's on, it's working fine

Last time a mate of mine did the soldering for a TSOP for me, and it worked fine, until I flashed it with a wrong BIOS and F****D it up!

My new motto is "If it ain't broke don't mess with it!" lol

I have a spare Akira modchip, (with a pin socket) which I might try on the bad TSOP board, but it needs a pinheader soldering to it first. Anyone know where I can buy the pinheaders to fit the Xbox mobos?

MrMajst3r · Post by **MrMajst3r** » Wed Oct 17, 2012 2:21 pm

You need standard pinheader (with 2,54mm raster), so you can buy it in your local shop with electronic components.

AZImmortal · Post by **AZImmortal** » Wed Oct 17, 2012 8:02 pm

This item description should give you all the info you need.

http://www.aliexpress.com/item/2-54mm-P ... 99461.html

On a related note, I find it hilarious that the seller in the link wants $19.52 US to ship a tiny product that they're selling for $0.54 US.

Post by **Xphazer** » Wed Oct 17, 2012 8:22 pm

I get them locally.. get longer ones and cut them. 8 Pin header for the price of 2. ^^
http://addison-electronique.com/catalog ... connector/

asbo · Post by **asbo** » Thu Oct 18, 2012 10:32 am

For us UK chaps nidge

nidge · Post by **nidge** » Thu Oct 18, 2012 1:04 pm

Thanks everyone

Asbo-> that's great, I will order some ASAP
