What kind of modchip is it ?

[sash5000]

Hi,

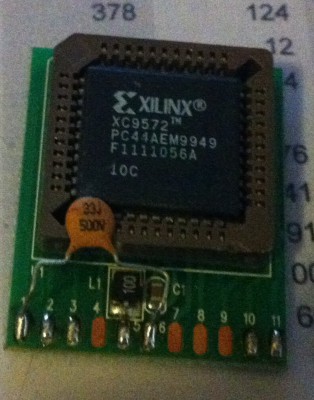

can anyone help me to identify my modchip.

The seller says it was an duox chip for xbox 1 ?

Sorry for my bad english

Kind regards
sash5000

[Dan Dar3]

This maybe? not a whole lot of help though...
http://forums.xbox-scene.com/lofiversio ... 41632.html

[professor_jonny]

that is not a modchip in the typical sence it is a clpd gated logic chip programmed to mimic a cheapmod is there another mem/flash chip on the back by chance ?

it looks like they have used a clpd as a gated memory device in other words.

if that is the case you would need a jtag programmer to flash upgrade it and it would envolve writing code you wont be able to flash upgrade it in any way

buy a new one .

[bigkidoz]

I have a similar chip that is connected by a multistrand cable like a mini ide cable but i think from memory i was able to flash it with iND bios but i could be wrong, i'll see if i still have it somewhere.
