Diet Slim?

[PressY4Pie]

I saw in the Show Off section i think Nextel made a "Diet" Slim, i was wondering if there were any complete pictures of such a thing? maybe some measurements?(:

[blighty]

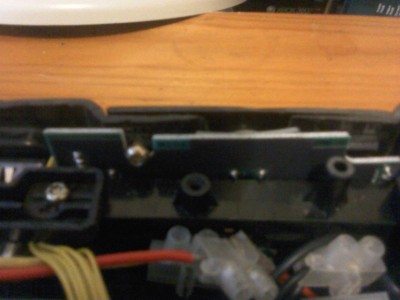

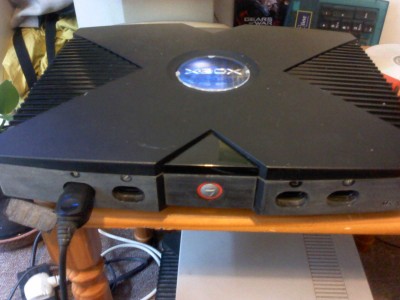

My one? I dont have any measurements for it but it started off as a normal slim, but i had seen a super slim on xbox-scene a long time ago and wanted to make it smaller, i just just used a ball of blue tac to work out how much clearence i had inside the case and kept cutting more off until the case squashed the ball down to a pancake ( if you draw an imaginary line between the joypad port numbers above the ports that would be where mine is cut down to )

let me see if i can find any pics for you

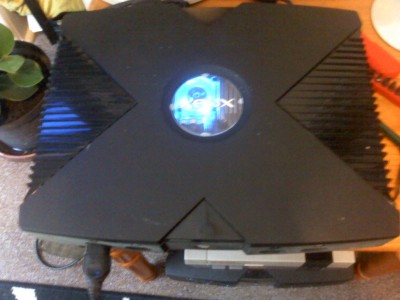

[blighty]

and...

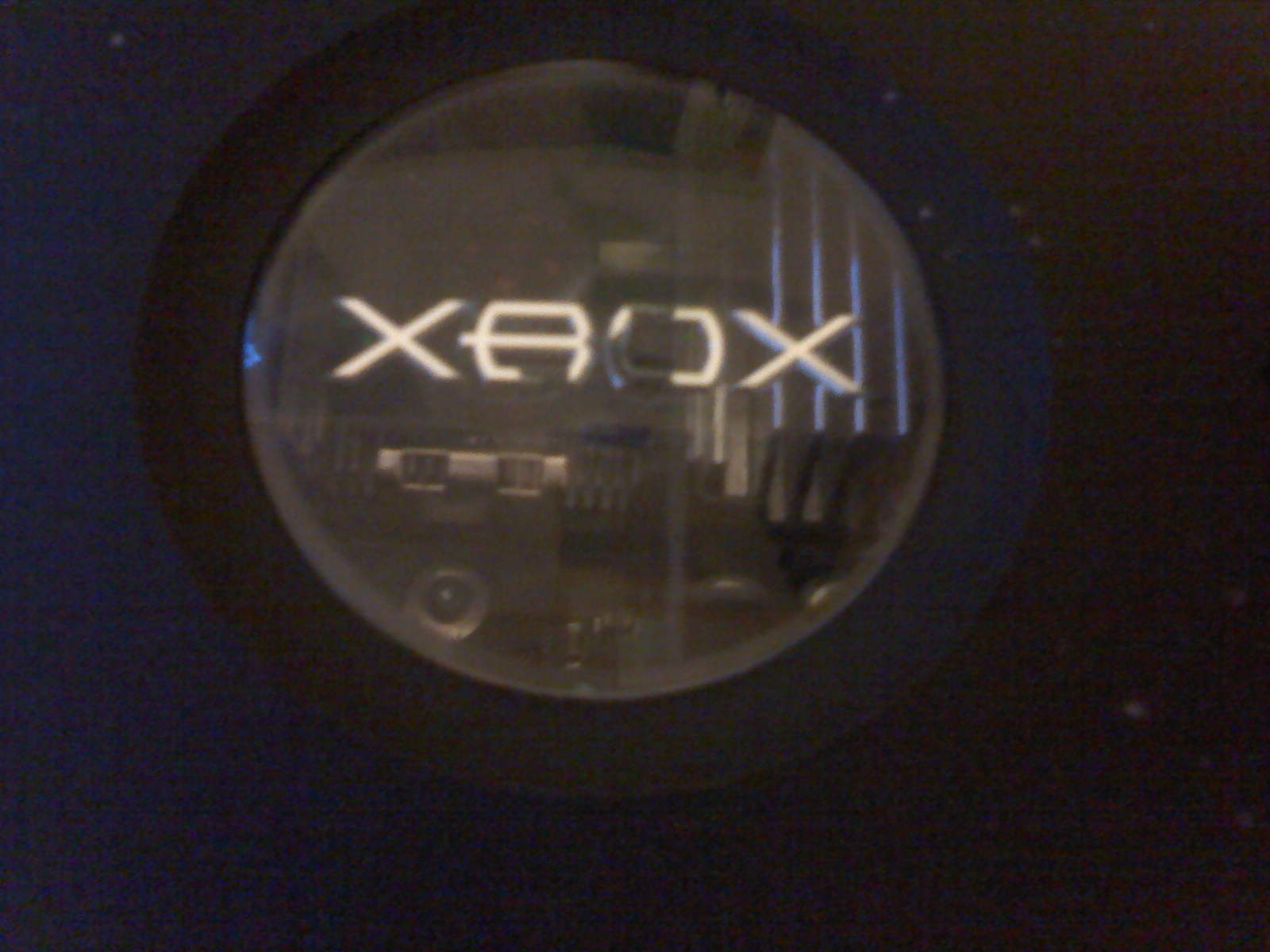

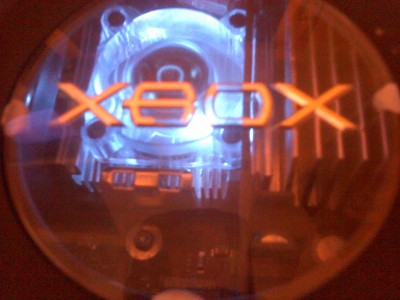

once cutting had finished the blue tac is now holding in my jewel till the paint comes

I have been intending on finishing this of but with running a small buisness and fixing my friends busted 5 turbo has left me a little short on time.

Will be getting some paint on it soon

bLiGhTy.

[Nextelhalo]

I've never seen a super slim with dimensions listed, you kinda have to wing it and fit it as you go just like Blighty did.
His xbox is a perfect model to go by IMO. cut and fit, cut and fit.

[PressY4Pie]

Why thank you. Sorry for the name mix up. ima try for about level with the top of the cpu heatsync. maybe a flat to like xman.

[BuZz]

Looks great! Now I want an xbox that slim

[PressY4Pie]

Just Started mine today. Gonna need a new fan and some other approach on the hdd caddy. Other than that its not to hard. Im thinkin im going to use a Laptop hard drive with a sata to ide adapter. Just seems easier.

[psychotron]

Nice job on the super slim. Never seen this before. Thanks for sharing your ideas and designs guys.
